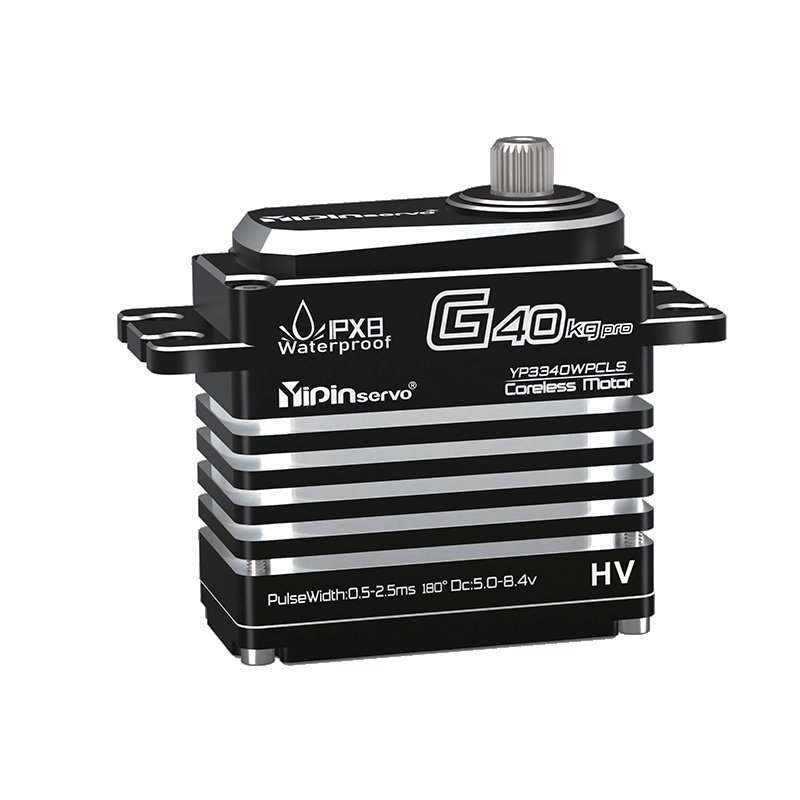

YP3340WPCLS Metal housing / IPX8 Coreless Servo Motor
The YP3340WPCLS is a YIPIN SERVO all metal servo motor in the Metal housing and IPX8 configuration. The customer brochure provides the published electrical, mechanical, environmental and dimensional data for this model. Use the attached engineering drawings and specification table to confirm fit, control requirements and application details before ordering.
Product Details
Product Overview
The YP3340WPCLS is a YIPIN SERVO all metal servo motor in the Metal housing and IPX8 configuration. The customer brochure provides the published electrical, mechanical, environmental and dimensional data for this model. Use the attached engineering drawings and specification table to confirm fit, control requirements and application details before ordering.
Product Details
| Control System | PWM pulse-width modulation control 1520uS/333Hz |
|---|---|
| Operating Voltage | 6.0~8.4V DC |
| Standby Current | <=20mA |
| Stall Current | 6.0V <= 6A; 7.4V <= 7A; 8.4V <= 8A |
| No Load Speed | 6.0V <= 0.13 sec/60°; 7.4V <= 0.11 sec/60; 8.4V <= 0.1 sec/60° |
| Max.Torque* | 6.0V >= 30kgf.cm; 7.4V >= 35kgf.cm; 8.4V >= 40kgf.cm |
| Rotating Direction | CCW(500-2500us) |
| Pulse Width Range | 500-2500us |
| Neutral Position | 1500us |
| Operating Travel Angle | 180+10°(500~2500us) It can be customized to 358° + 10° (500~2500us) |
| Sizes | 40.5x21x41.7mm |
| Mechanical Limit Angle | 360° |
| Dead Band Width | <= 3 us |
| Operating Temperature Range | -40 C~+100 C |
| Storage Temperature Range | -20 C~+60 C |
| Weight | 95g (not including accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal gear |
| Motor Type | coreless |
| Waterproof Rating | IPX8 |

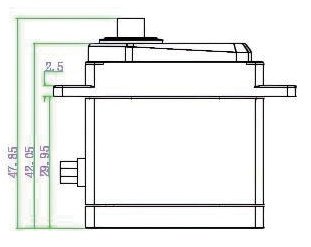

Engineering Drawings
Request a Quote
Contact our team with your operating voltage, control signal, load conditions and target quantity for application confirmation.
