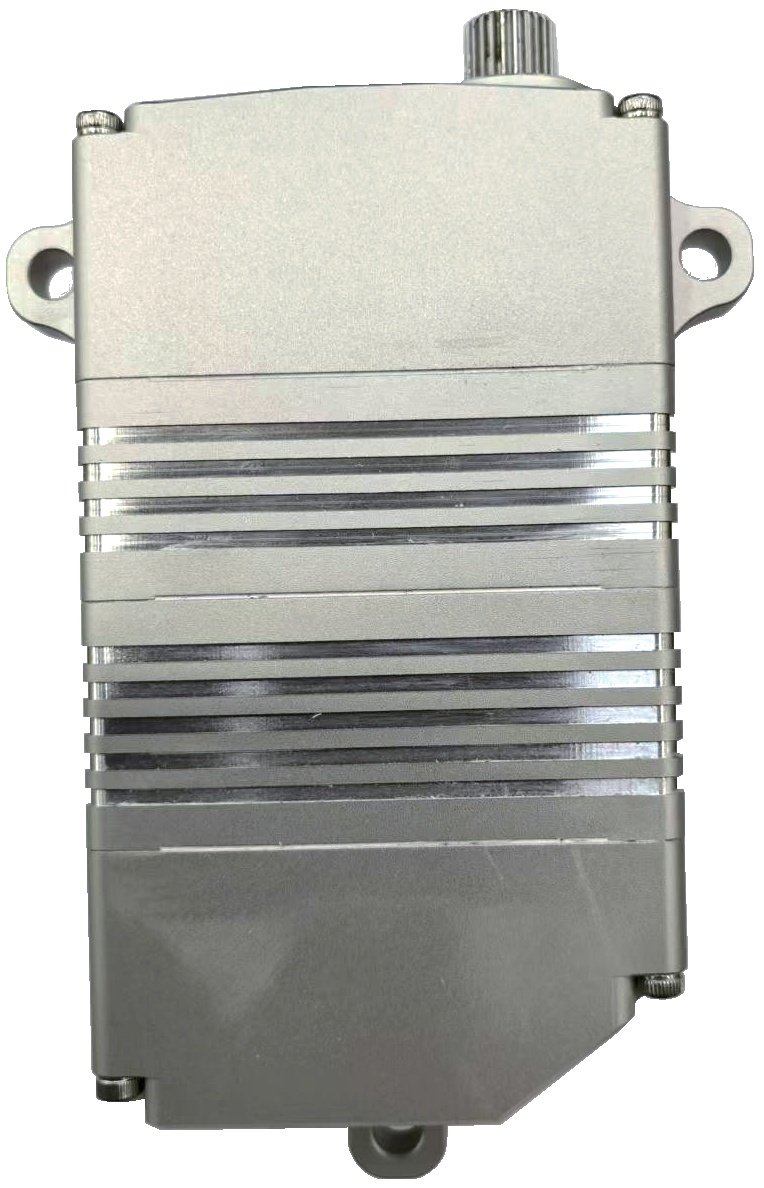

JZ35-300 CAN BUS/PWM Brushless Dc Motor Servo Motor
Product Details
Product Details
Technical Specifications
| Control system | CAN Bus / PWM |
|---|---|
| Rated voltage | DC 30 V |
| Voltage range | DC 24-32 V |
| Stall torque | 300 kgf.cm @ 30 V |
| Rated torque | 120 kgf.cm @ 30 V |
| Stall current | 5.00 A |
| Rated current | 1.95 A |
| No-load speed | 220 degrees/s @ 25 C / 30 V |
| Rated speed | 150 degrees/s @ 25 C / 30 V |
| Default travel angle | +/-100 degrees (200 degrees total travel) |
| Operating temperature | -30 C to +65 C |
| Case material | Aluminum Alloy 7075 |
| Motor type | Brushless DC motor |
| Gear set material | Hardened steel |
| Position sensor | Contactless |
| Shielded connecting cable | J30J-15TJL / 1500 mm |
| Ball bearing | 6BB |

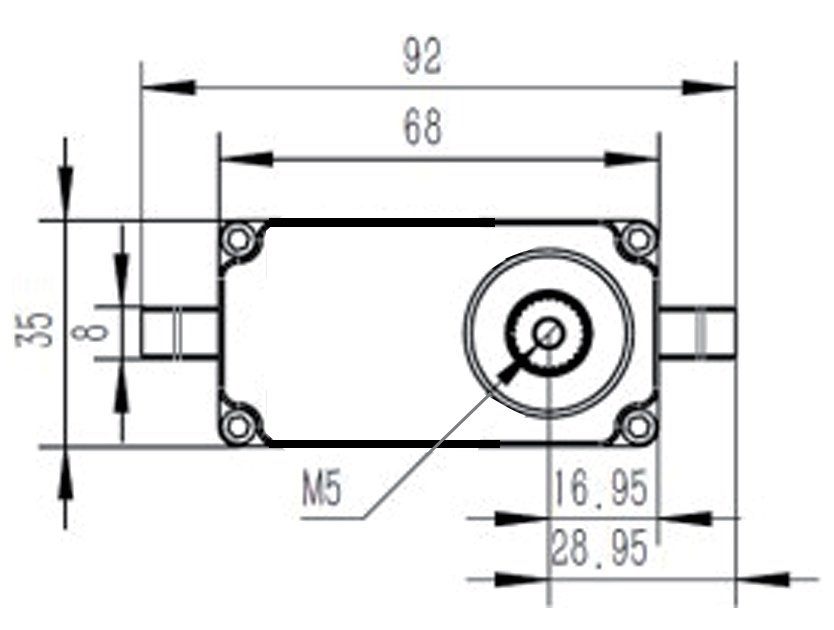

| Case dimensions | 68 x 35 x 120 mm |
| Weight | 680 g (+/-10%) |
| Baud rate | 500 Kbps |
| Node number | 0x25 (range 1-127; 0 is radio) |
| CAN communication | CANopen standard frame / CAN extended frame |
